Eye Spy Display Pro | Touchscreen Surveillance, Tracker, ALPR & Drone Detector
Before You Order
- Included: Eye Spy Display Pro with firmware installed, 2-inch touchscreen, integrated 500mAh rechargeable battery and USB-C cable.
- Power: Rechargeable battery and USB-C charging/external power.
- Detection and alerts: Supported Bluetooth LE and 2.4 GHz Wi-Fi signatures for ALPR, trackers, cameras and compatible drone broadcasts; screen and speaker, with vibration hardware.
Buying for a team?
Request a quote for multiple devices. Include your preferred model, quantity, delivery country/postal code and target date so we can confirm availability and shipping before you order. General response time: 24–48 hours.
Detection limits: Alerts depend on supported wireless signatures, signal conditions and installed firmware. The device cannot detect every target; no alert does not prove that an area is free of surveillance or tracking equipment.
Bluetooth LE and Wi-Fi monitoring run in scheduled phases. Brief transmissions can be missed while another phase is active.

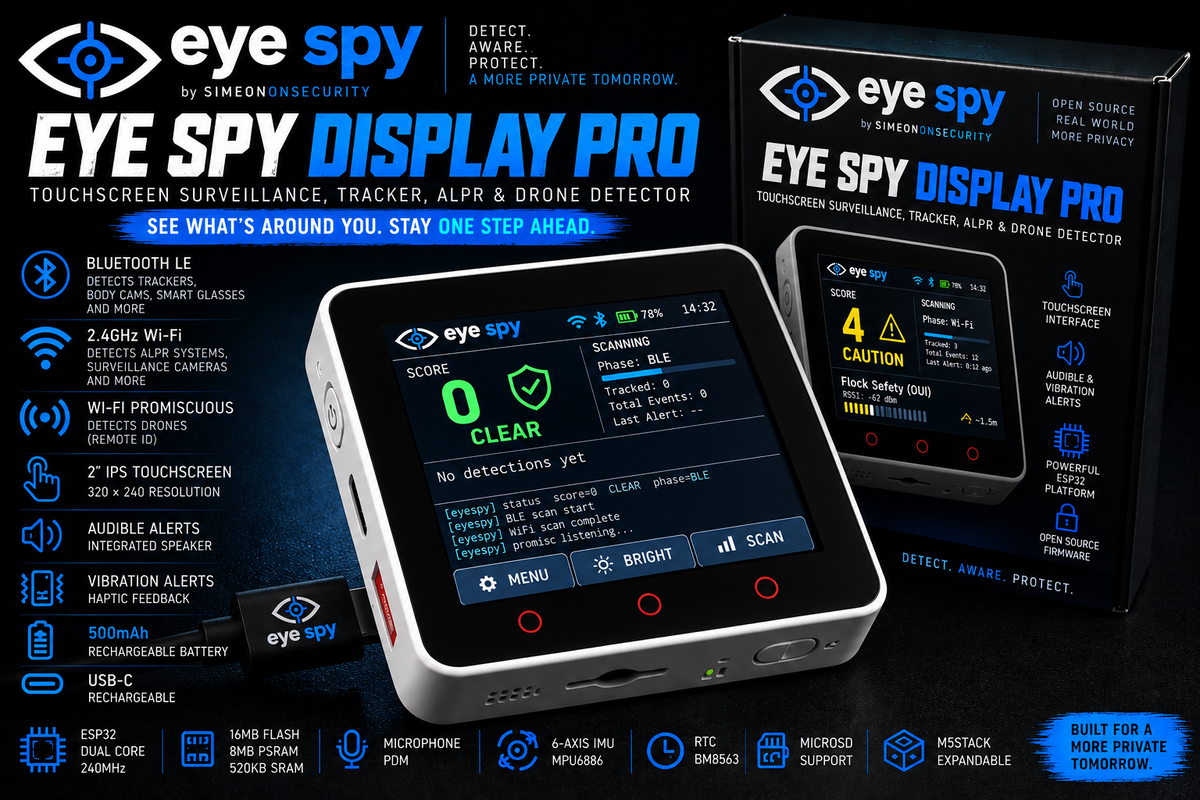

Eye Spy Display Pro | Touchscreen Surveillance, Tracker, ALPR & Drone Detector
Hardware Platform
M5Stack Core2
Processor
ESP32-D0WDQ6-V3 dual-core 32-bit processor
Up to 240 MHz
Wireless
2.4 GHz Wi-Fi
Bluetooth LE
Display
2-inch IPS color TFT LCD
320 × 240 resolution
Touch Interface
FT6336U capacitive touchscreen
Three programmable virtual button zones
Memory
16MB Flash
8MB PSRAM
520KB SRAM
Audio
Integrated speaker
NS4168 I2S amplifier
Haptic Feedback
Integrated vibration motor
Battery
500mAh rechargeable lithium battery
Power Management
AXP192 power management system
Connectivity
USB Type-C
Grove interface
M5-Bus expansion interface
Storage Expansion
microSD card slot
Sensors
6-axis MPU6886 IMU
Integrated SPM1423 microphone
RTC
BM8563 real-time clock
Dimensions
54 × 54 × 16.5 mm
Weight
Approximately 54.9g
Important Detection Limitations
Eye Spy is a wireless surveillance-awareness device, not a universal surveillance detector.
It identifies supported devices when they expose wireless characteristics recognized by the installed firmware and Eye Spy observes those characteristics during the appropriate scanning phase.
It does not identify surveillance equipment solely because a camera, microphone, tracker, or other sensor exists nearby.
A supported device might not be detected if:
• Its relevant wireless radio is disabled
• Its identifier or wireless behavior has changed
• Its signal is outside usable range
• Its signal falls below the configured RSSI threshold
• Its relevant transmission occurs outside the applicable Eye Spy scanning window
• The manufacturer changes its firmware or hardware
• The device uses an unsupported frequency or protocol
• The device does not expose a currently supported signature
• Another Eye Spy detection phase occupies the shared radio when a short transmission occurs
Eye Spy shares radio time across detection methods. Short transmissions can be missed while another scanning phase is active.
No detection should be interpreted as proof that an environment contains no surveillance or tracking equipment.
Broad Surveillance Awareness. One Device. No Subscription.
Eye Spy Display Pro combines Bluetooth LE monitoring, Wi-Fi scanning, promiscuous Wi-Fi monitoring, confidence-based detection, persistent-device awareness, a touchscreen, rechargeable battery, speaker, vibration hardware, expandable storage, additional memory, and open-source firmware.
It provides a self-contained platform for surveillance awareness, tracker awareness, ALPR research, drone Remote ID monitoring, privacy research, cybersecurity education, vehicle use, and wireless experimentation.
No cloud account. No subscription. No required phone.
Eye Spy is developed by SimeonOnSecurity and offered on preconfigured compatible hardware by STS Collective.
View Eye Spy Source Code & Technical Documentation
Shop STS Collective Security & Privacy Tools
Setup guides and downloads
Download your free PDF guide for setup, power requirements, troubleshooting and documentation links. Save a copy for offline reference.
Project documentation
Use the instructions for your exact hardware and installed firmware version. Setup help: support@stscollective.com.
Hardware, firmware, compatibility, testing, and support
- Hardware: Eye Spy Display Pro | Touchscreen Surveillance, Tracker, ALPR & Drone Detector
- Firmware: FlockYou, Eye Spy is the firmware or software path identified above. The listing states that the image is installed or preloaded.
- Compatibility: Review the hardware, power, operating system, software, accessory, and regional requirements stated above before ordering.
- Testing: This listing does not promise individual pre-shipment testing. Contact support before ordering if you need a specific verification.
- Setup and DIY: Use the project, setup, and DIY references already included in this description. Follow the guide for the exact hardware and firmware. Project or setup documentation 1 Project or setup documentation 2 Project or setup documentation 3
- Support: Contact support@stscollective.com for setup and product questions.
- Lawful use: Use only on hardware, networks, cards, radio bands, and systems you own or have explicit permission to test. Follow applicable laws, platform rules, privacy rules, and radio regulations. Do not access, copy, interfere with, or disrupt other people's systems.
DIY flashing option
Flashing your own compatible device is usually manageable when you follow the project guide. STS Collective provides a ready-to-use flashed device for customers who prefer convenience. You do not need to buy a flashed unit to use the project.
Use the guide for your exact board and selected firmware:
- FlockYou project and flashing guide
- Eye Spy project and flashing guide
- Upstream project documentation
Confirm the board revision, firmware target, power requirements, and current release before flashing. Reflashing replaces the installed firmware and may erase settings.
Hardware origin, packaging, and firmware
This listing uses standard off-the-shelf OEM hardware from the original hardware manufacturer. STS Collective is not the hardware manufacturer. The hardware supplied matches the hardware shown in this listing.
STS Collective develops and flashes STS firmware, or flashes firmware from the original developer identified below. Your order is packaged to represent the physical hardware, not the firmware. When original packaging is supplied, it is OEM packaging for the hardware model. Fulfillment handling sometimes removes original packaging or uses other shipping packaging. Packaging does not identify the firmware developer.
Firmware developer
- Eye Spy: SimeonOnSecurity developed the installed firmware with sponsorship from STS Collective.
STS Collective flashes the identified firmware before shipment. The installed firmware does not change the source or manufacturer of the physical hardware.
